About this item
Heavy Duty: ABS plastic housing, durably made for safety use, rear cover insulates terminals against any short of circuits, equipped with 4 sets of bolts.
Operation: On/Off 2 positions, 275 A continuous at DC 12V, 455 A intermittent at DC 12V, 1250 A momentary at DC 12V.
Compatible: used for DC 12 - 48V systems to isolate and secure the electrical system, can stand alone, or be locked together with another switch. Its purpose is to eliminate any power draw from the battery when the vehicle or boat is not in use and disconnect the battery safely.
Widely used: For cars, marine boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks, and other devices.

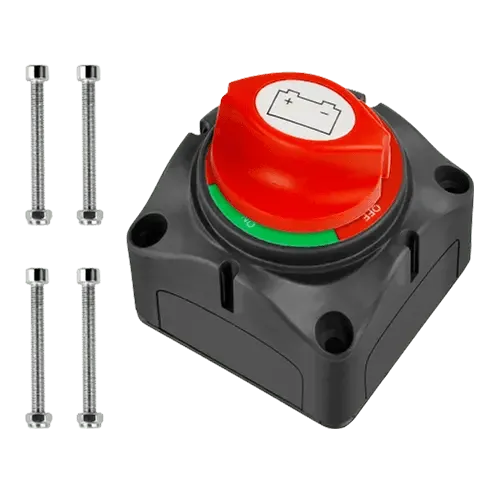

Package include: 1x On/Off battery switch, 4 bolts included.
Used for DC 12 -48 V systems to isolate and secure the electrical system, can stand alone or be locked together with another switch. Eliminate any power draw from the battery when the vehicle or boat is not in use, disconnecting the battery safely.
Operation: DC 12-48 V systems, On/Off 2 position. Fit for Car, Vehicle, RV, Marine Boat, and other electrical equipment
Purpose: used for the battery to isolate and secure the electrical system.
Heavy-duty, copper terminal & widely used.
Convenience: easy to install & simple to use.
ABS plastic housing, durable made
Features
Well Built Heavy Duty Cut Off Switch
Panel-mounted switches are designed specifically for panel mount applications; Countersunk recesses for surface mount applications.
ABS plastic housing and on/off switch knob
ABS plastic housing durably made for safety use, rear cover insulates terminals against any short circuit.
Used for DC 12 - 48V systems to isolate and secure the electrical system.
Can stand alone or be locked together with another switch.
Super Safety
The battery disconnect switch can disconnect the battery safely, and eliminate any power draw from the battery when the vehicle or boat is not in use.

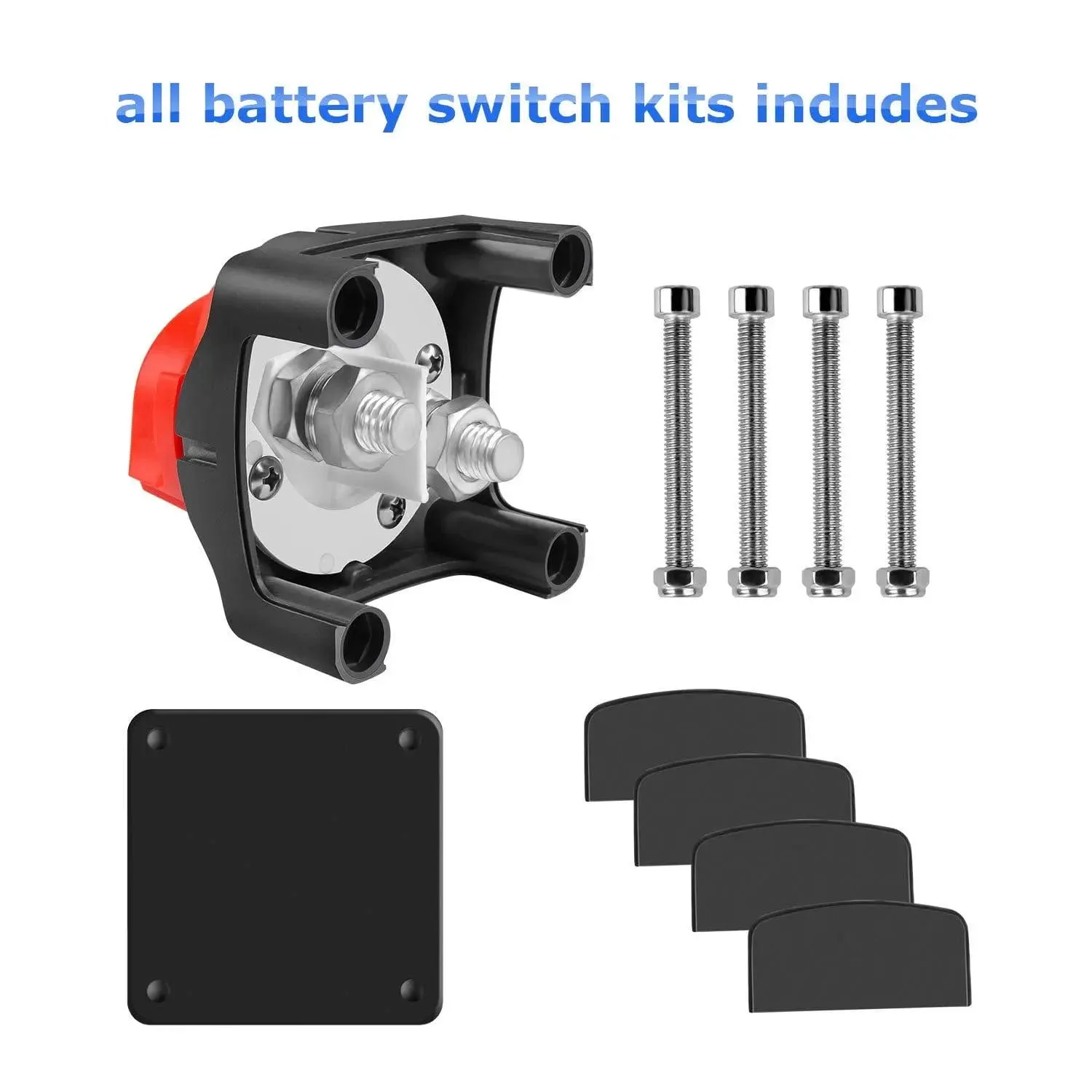

Brass Package Included: stud and nut
1 * Battery Switch
Backing Pad
Side Pad * 4
Mounting Bolt * 4
Wiring Options
Simple set up
The most normal way to set up the switch is to connect the master switch to the battery and electronic devices directly.

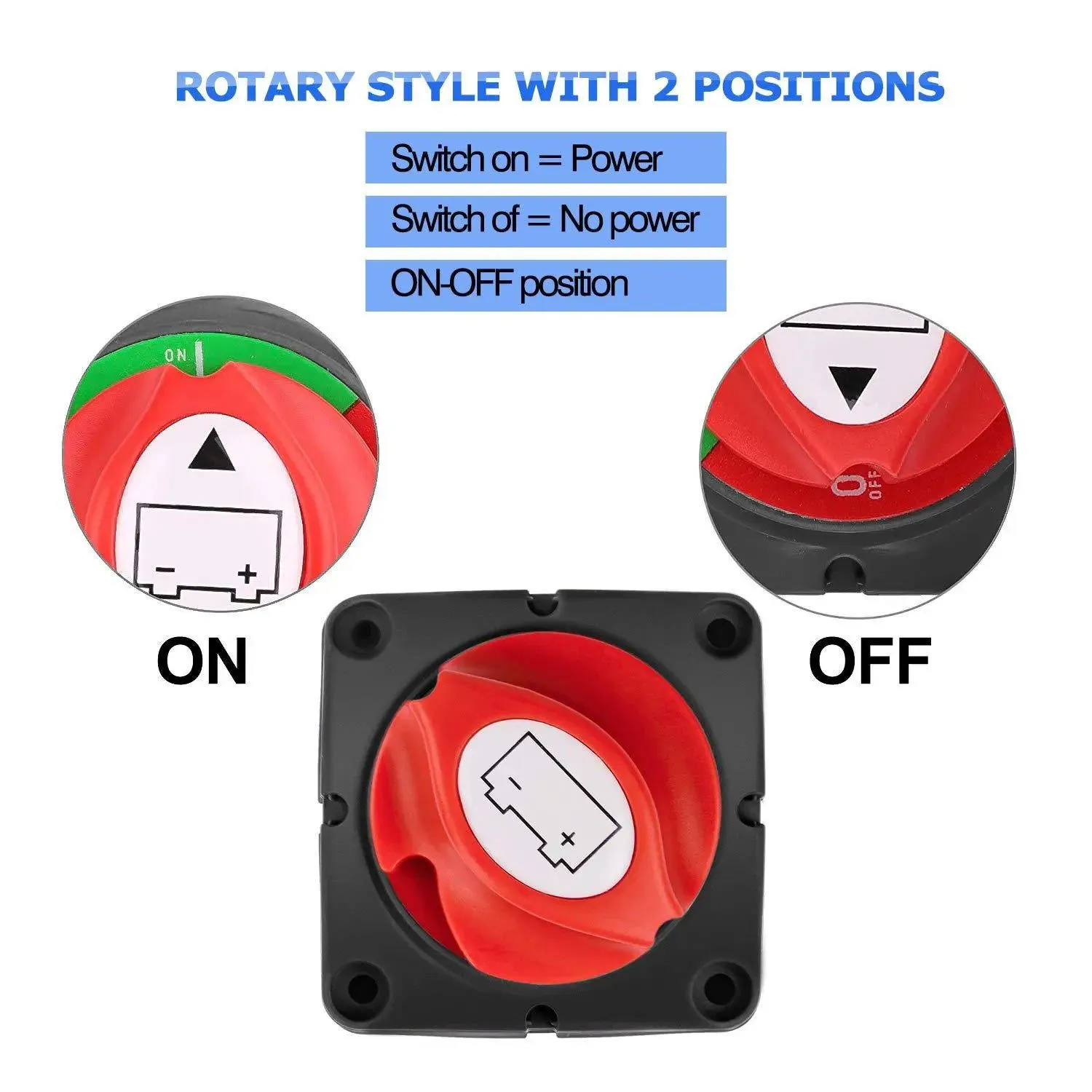

Simple Operation:
Switch on = Power on
Switch off = Power off
Single on-off switch
This battery switch can also be used as an on-off switch to control the accessory power, its function is just like others toggle switches or rockers switches.
dual battery set up
The 2-position battery kill switch can be also connected to 2 batteries by following this wiring diagram. Please remember that it will control the battery power of the 2 batteries simultaneously, can not be controlled separetly.
